USB Autoscope III
- Operation Manual
Operation Manual for USB Autoscope III
Please read this manual thoroughly before attempting to operate the device.
Contents
1. Purpose
2
2. Technical characteristics of the USB Autoscope III
2
2.1 General
2
2.2 Analog oscilloscope mode
2
2.3 Logic analyzer mode
3
2.4 Software
3
2.5 Parameters of the USB port's galvanic isolation
4
2.6 Front panel elements
5
2.7 Back panel elements
5
3. Preparing the computer for use with the USB Autoscope III
7
3.1 Minimum Laptop or PC requirements
7
3.2 Installation of the USB Oscilloscope program and utilities
8
3.3 Installation of the device drivers
12
4. Preparing the device for use
13
5. USB Autoscope III kit description
14
6. Manufacturer limited warranty
17
7. Troubleshooting
17
7.1 The device does not turn on
17
7.2 "USB transfer error"
18
www.autoscope.eu
1
USB Autoscope III
- Operation Manual
1. Purpose
The USB Autoscope III is used for troubleshooting of various electronic vehicle systems, such as
ignition and timing system. The USB Autoscope III is also very useful for engine mechanical
diagnostics. The device is universal in nature and not tied to any particular vehicle system
or brand.
The device works in conjunction with the USB Oscilloscope program and connects to any
USB 2.0
480 Mbit/s (HI- SPEED) port of a Windows laptop or PC. The Windows version
should be XP SP2 or higher.
2. Technical characteristics of the USB Autoscope III
2.1 General
PC interface type
- USB 2.0 480 Mbit/s (HI- SPEED)
Maximum (supported from the device - 25 MB/s
side) data transfer speed
Data FIFO buffer depth
- 512 kB
Device supply source
- from USB
Current consumption from USB
In operating mode - no more than 300 mA
At idle: - no more than 60 mA
Device provides uninterrupted (frameless) data transfer of digitized data to the laptop or PC
The stream of digitized data is stored directly on the hard disk of the laptop or PC in real time
2.2 Analog oscilloscope mode
Number of analog inputs
- 8
Voltage range (switchable, two ranges)
analog inputs 1…4 - ±6 / 30 V
analog inputs 5, 6 - ±60 / 300 V
analog inputs 7, 8 - ±6 V
Input impedance
- 1 MΩ
ADC resolution
- 12…16 bit 1
Maximum sampling frequency for channel:
in 1 channel sub mode - 12.5 MHz
in 2 channel sub mode - 5.0 MHz
in 4 channel sub mode - 2.5 MHz
in 8 channel sub mode - 1.25 MHz
1
The nominal signal digitizing depth is 12
bit, increasing up to 16
bit with slower digitizing speeds
www.autoscope.eu
2
USB Autoscope III
- Operation Manual
2.3 Logic analyzer mode 2
Number of logic analyzer inputs
- 8
Voltage range for logic inputs
- 0…5 V
Modes
- 2, 4, 8 channel analyzer
Maximum sampling frequency for channel:
in 2 channel sub mode
-
100 MHz
in 4 channel sub mode
-
50 MHz
In 8 channel sub mode
-
25 MHz
Input impedance
-
10 kΩ
(1 MΩ for signals below 5 V. 510 Ω for voltage
levels in excess of 5 V)
2.4 Software
Supported operating systems
- Windows XP SP2 / SP3,
Windows Vista, Windows 7,
Windows 8 / Windows 8.1
Main features
- Displaying mode + recording + measuring in real
time simultaneously
Number of channels
- Selectable 1, 2, 4, 8
Scale parameters:
1 channel sub mode -
2 µS / Div…1 S / Div. with step 1-2-5
2 channel sub mode -
5 µS / Div…1 S / Div. with step 1-2-5
4 channel sub mode -
10 µS / Div…1 S / Div. with step 1-2-5
8 channel sub mode -
20 µS / Div…1 S / Div. with step 1-2-5
Voltage sensitivity setting 3:
for input voltage range ± 6 V
-
2 mV / Div … 10 V / Div. with step 1-2-5
for input voltage range ± 30 V
-
10 mV / Div … 50 V / Div. with step 1-2-5
for input voltage range ± 60 V
-
20 mV / Div…100 V / Div. with step 1-2-5
for input voltage range ± 300 V
-
0.1 V / Div…100 V / Div. with step 1-2-5
when using high voltage probes
-
20 V / Div…100 kV / Div. with step 1-2-5
Trigger modes:
- auto
- normal
- wait
- single
- none
2
If it is desired to have the logic analyzer mode available it must be selected as an option during
the USB Oscilloscope software installation. The device should be also equipped with the optional connector
"Digital Inputs".
3
The value of the maximum voltage sensitivity depends on the sampling frequency.
www.autoscope.eu
3
USB Autoscope III
- Operation Manual
Trigger parameters:
- channel
- front
- level
- level increasing threshold
- threshold time
- minimal interval
Maximum file size depends on the file system:
FAT32 - 4 GB
NTFS - 16 TB
Number of channels in logic analyzer - User selectable 2, 4, 8
mode
Input sensitivity parameters for logic analyzer modes:
2 channel sub mode - 0.2 µS / Div…0.2 S / Div. with step 1-2-5
4 channel sub mode - 0.5 µS / Div…0.5 S / Div. with step 1-2-5
8 channel sub mode -
1 µS / Div … 1 S / Div. with step 1-2-5
Trigger modes in logic analyzer mode:
- auto
- wait
- single
- none
Input options for the logic analyzer
- combination level / front for different channels
mode
2.5 Parameters of the USB port's galvanic isolation
USB Autoscope III has galvanic isolation of the USB port
(device inputs ground <> PC ground)
Galvanic isolation resistance
- not less than 20 GΩ
Galvanic isolation capacitance
- not more than 30 pF
Galvanic isolation test voltage
- 2 kV for 1 minute
www.autoscope.eu
4
USB Autoscope III
- Operation Manual

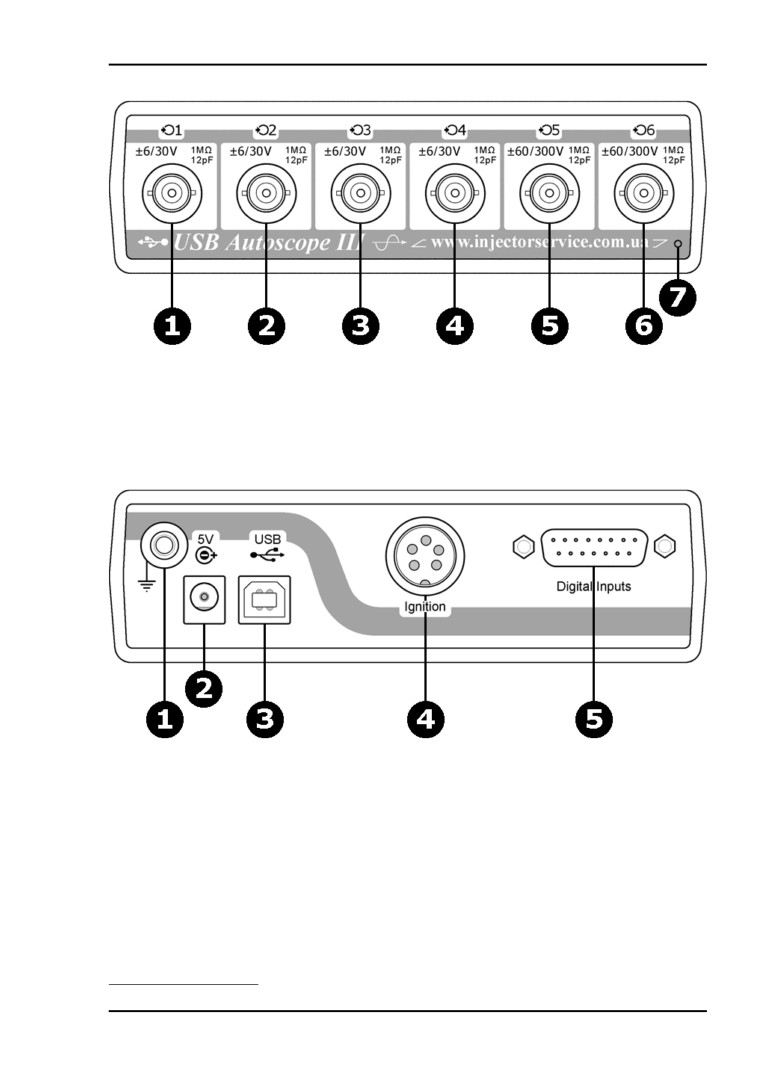

2.6 Front panel elements
Front panel of the USB Autoscope III.
1…4 Connections for analog inputs 1…4. Input voltage range ± 6 / 30 V.
5…6 Connections for analog inputs 5…6. Input voltage range ± 60 / 300 V.
7 USB status indicator.
2.7 Back panel elements
Back panel of the USB Autoscope III.
1 Device ground terminal.
2 5 V connection 4. Used for connection of an external power supply.
3 USB connection. Used for connection of the USB Autoscope III to
USB 2.0 480 Mbit/s (HI- SPEED) port of a laptop or PC. The connection uses a
USB 2.0 type A-B cable.
4 Ignition connection. Analog inputs 7, 8.
5 Digital Inputs connection 4. Logic inputs 1…8.
4
Installed optionally.
www.autoscope.eu
5
USB Autoscope III
- Operation Manual

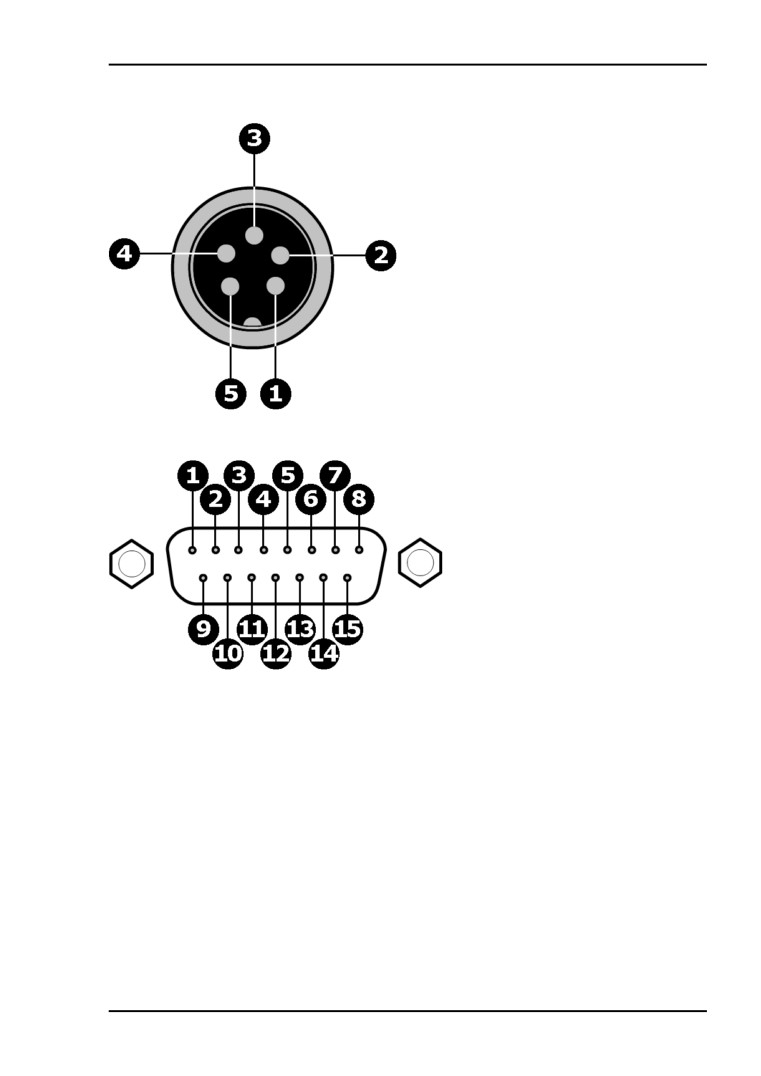

Connector "Ignition"
1
Analog input 8.
2
Device ground.
3
Not connected.
4
Device ground.
5 Analog input 7.
Connector "Digital Inputs"
1
Logic input 1.
2
Logic input 2.
3
Logic input 3.
4
Logic input 4.
5
Logic input 5.
6
Logic input 6.
7
Logic input 7.
8
Logic input 8.
9…15 Device ground.
www.autoscope.eu
6
USB Autoscope III
- Operation Manual
3. Preparing the computer for use with the USB Autoscope III
3.1 Minimum Laptop or PC requirements
Processor
- Pentium IV 2 GHz
RAM (random-access memory)
- 1 GB
Hard disk drive
- 10 GB of free disk space, data-transfer protocol
at least UDMA 100
Optical disc drive
- CD-ROM for software installation
PC interface
- port USB 2.0 480 Mbit/s (HI- SPEED)
Video adapter
- AGP or PCI Express
Monitor
- SVGA
Operating system
- Windows XP SP2 / SP3,
Windows Vista, Windows 7 or
Windows 8 / Windows 8.1
Additional requirements
- Any reasonably modern laptop or PC will be
adequate
www.autoscope.eu
7
USB Autoscope III
- Operation Manual
3.2 Installation of the USB Oscilloscope program and utilities
Insert the installation CD disc in the optical disk drive of the computer.

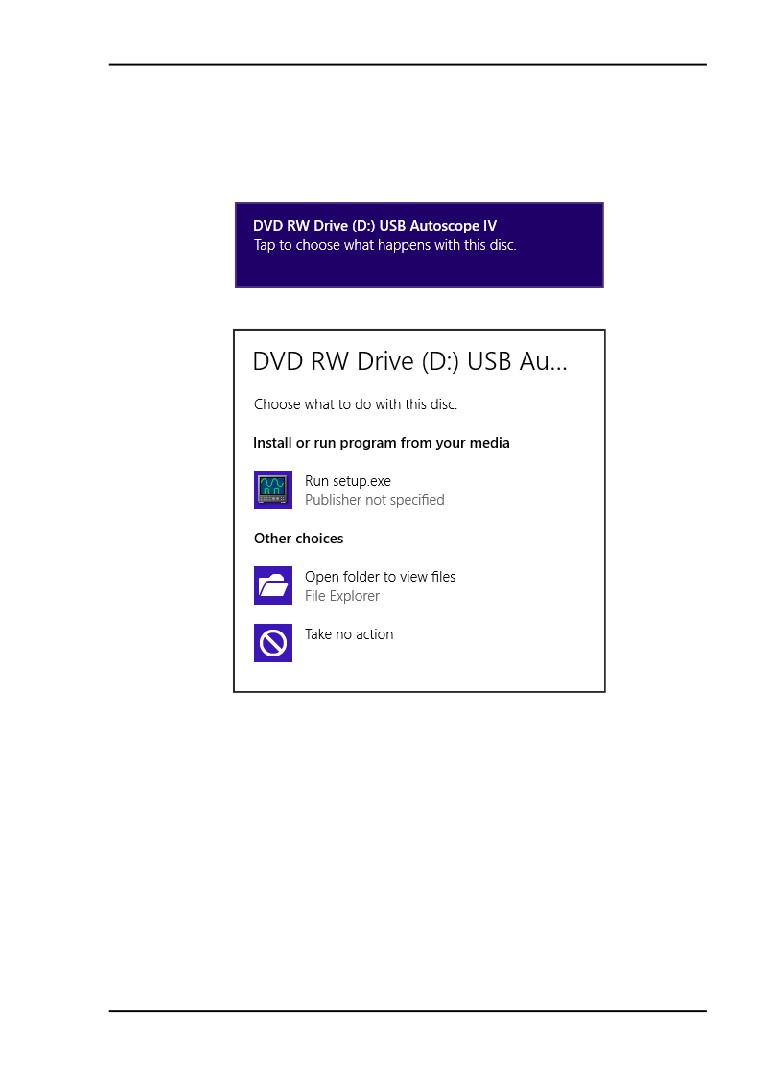

If the notification "Tap to choose what happens with this disk" appears, left-click
the message screen.
Choose the option "Run setup.exe".
If after inserting installation CD in the optical disk drive of computer nothing happens,
browse through the disc and open the program setup file, called "Setup.exe". The drive letter
your computer uses for the optical drive, often D:\Setup.exe or E:\Setup.exe
www.autoscope.eu
8
USB Autoscope III
- Operation Manual

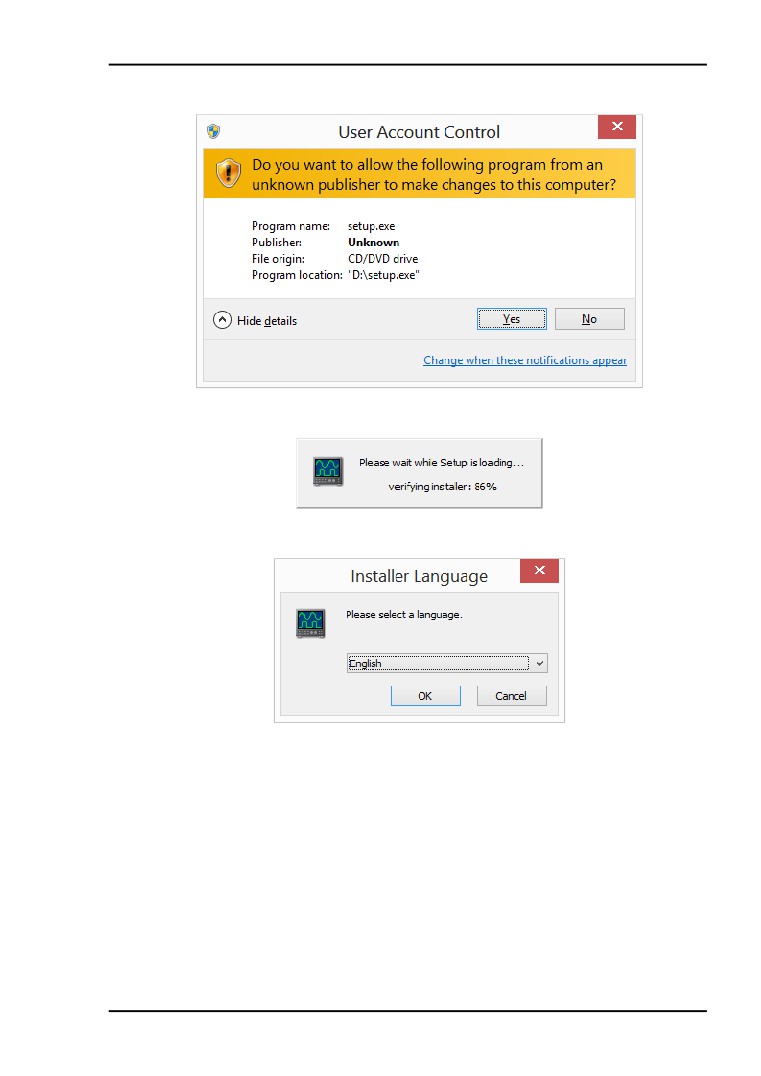

If a pop up about unknown publisher of "setup.exe" appears, click "Yes".
You may have to wait while the installer verifies.
In the window "Installer Language", change the installation language if desired.
Then, follow the installation instructions, changing parameters only when required.
www.autoscope.eu
9
USB Autoscope III
- Operation Manual

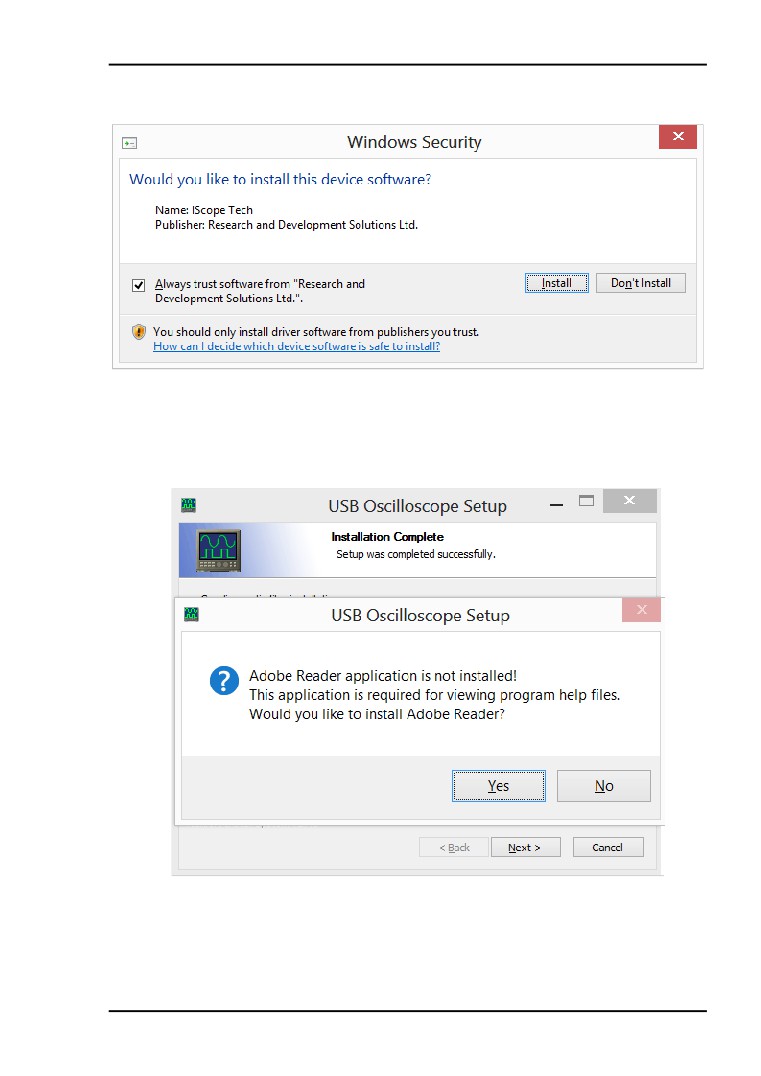

In window "Windows Security" activate option "Always trust software from…" then
press button "Install".
If the message "Windows can't verify the publisher of this driver software" appears,
choose the option "Install this driver software anyway".
If a message about the need to install "Adobe Reader" software appears, agree and install
the suggested program.
Installation of the "Adobe Reader" program may take several minutes.
www.autoscope.eu
10
USB Autoscope III
- Operation Manual

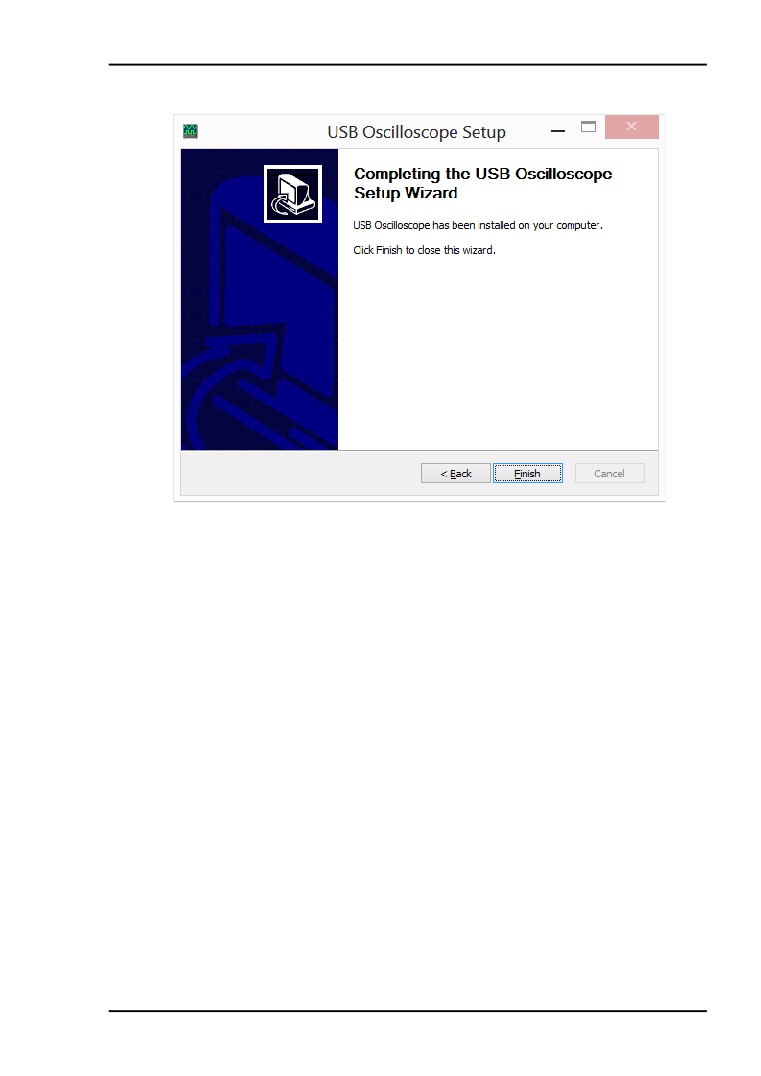

Press the "Finish" button.
Now the USB Oscilloscope software is installed completely and drivers are presetting.
www.autoscope.eu
11
USB Autoscope III
- Operation Manual

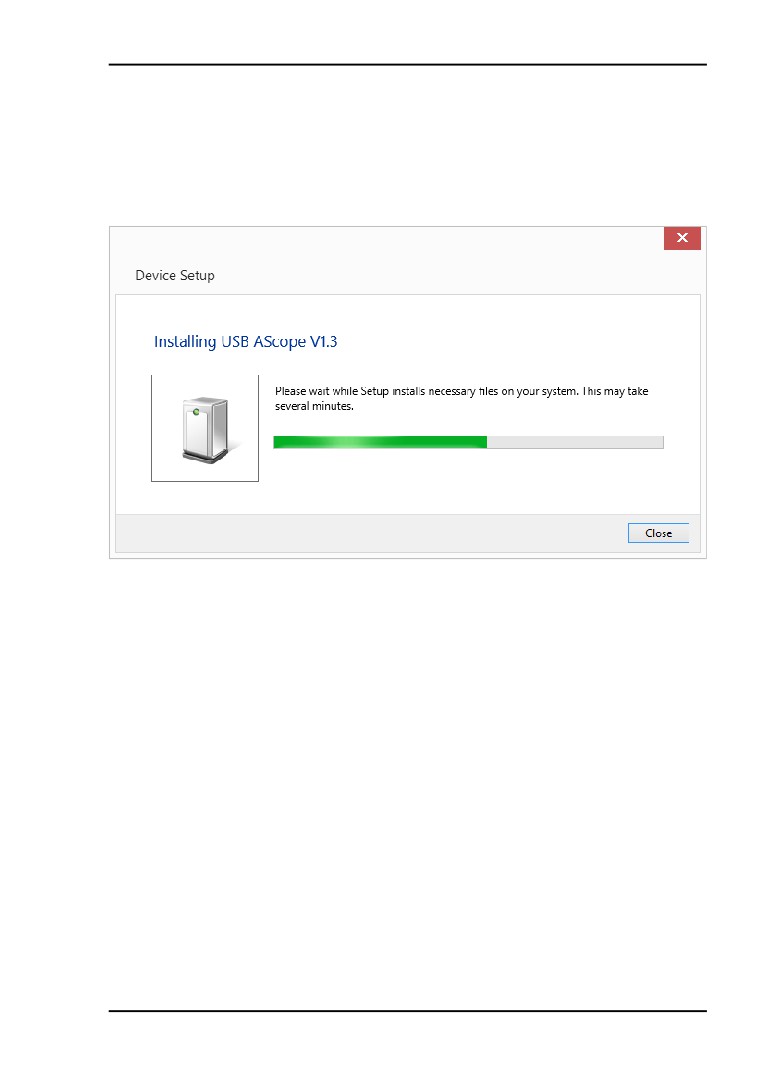

3.3 Installation of the device drivers
Connect the device to USB 2.0 480 Mbit/s (HI-SPEED) port of the laptop or PC only after
installation of USB Oscilloscope software.
Right after connection of the device to a USB 2.0 480 Mbit/s (HI- SPEED) port
the installation of drivers will start automatically.
After successful installation the user will get an installation report.
www.autoscope.eu
12
USB Autoscope III
- Operation Manual
4. Preparing the device for use
The device connects to a laptop or PC's USB port using a USB 2.0 A/B interface cable.
The computer must have Microsoft Windows XP SP2 or higher operating system and have
the USB Oscilloscope software installed.
The black alligator clips from the USB Autoscope III's oscilloscope probes, cables and
adapters must be connected to vehicle ground on the diagnosed vehicle (if an older vehicle,
use the engine ground) at only one point.
The device and it's cables must be placed as far as possible from the high voltage wires
of the ignition system, the exhaust manifold, and the cooling system fan.
The computer itself must be grounded using a separate multi stranded copper wire
with a cross section of more than 0.5 mm2, otherwise a failure of the computer or device
is possible. If a laptop running on its internal battery and with the main power supply
disconnected is used, this requirement is unnecessary.
In order to avoid distortion and / or damage to the data that are sent via the USB interface,
due to electromagnetic interference from the vehicle's ignition system, it is recommended
to ground the USB Autoscope III using a separate multi stranded copper wire with
a cross section of more than 0.5 mm2.
www.autoscope.eu
13
USB Autoscope III
- Operation Manual

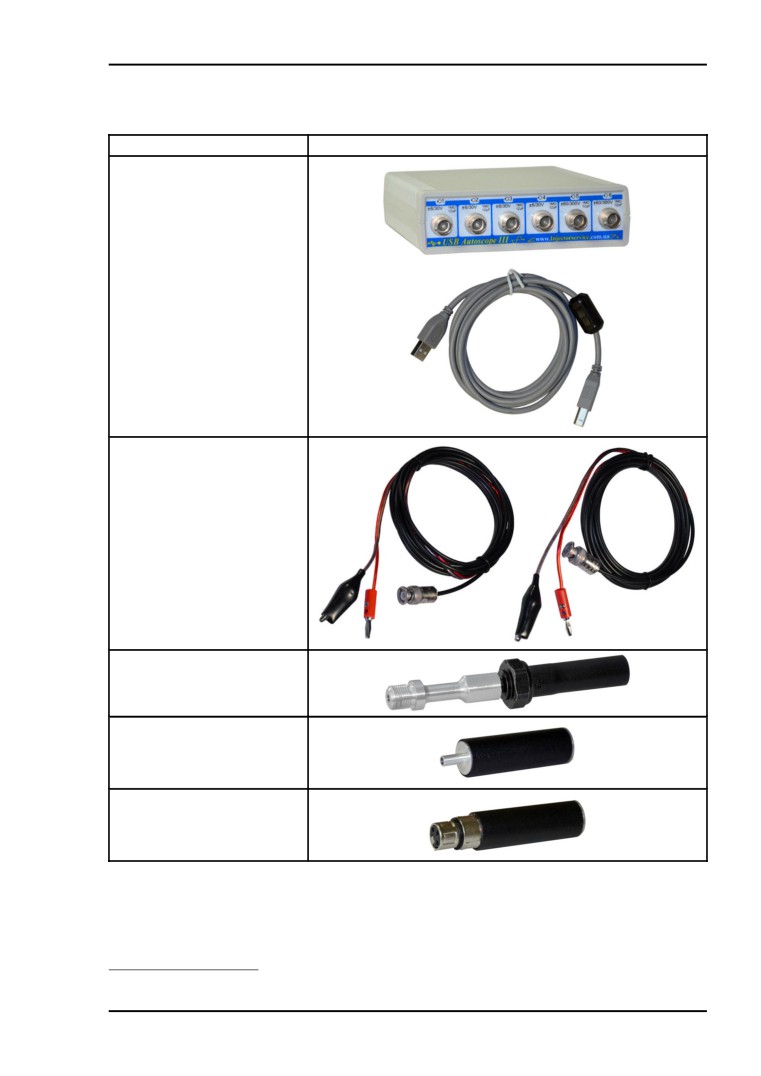

5. USB Autoscope III kit description
Name
Appearance
USB Autoscope III,
USB 2.0 A/B interface cable,
CD with software
Probe oscilloscope probe, 2 pcs
Px35 in cylinder
pressure transducer 5
Dx vacuum transducer
Dx Amplifier
for vacuum transducer
5
Starting from 01.06.2014 instead of Px (-0.9…+6
Bar) the transducer
Px35
(-0.95…+35
Bar) is supplied.
If needed, the Px
transducer can be purchased in addition to the Px35.
www.autoscope.eu
14
USB Autoscope III
- Operation Manual

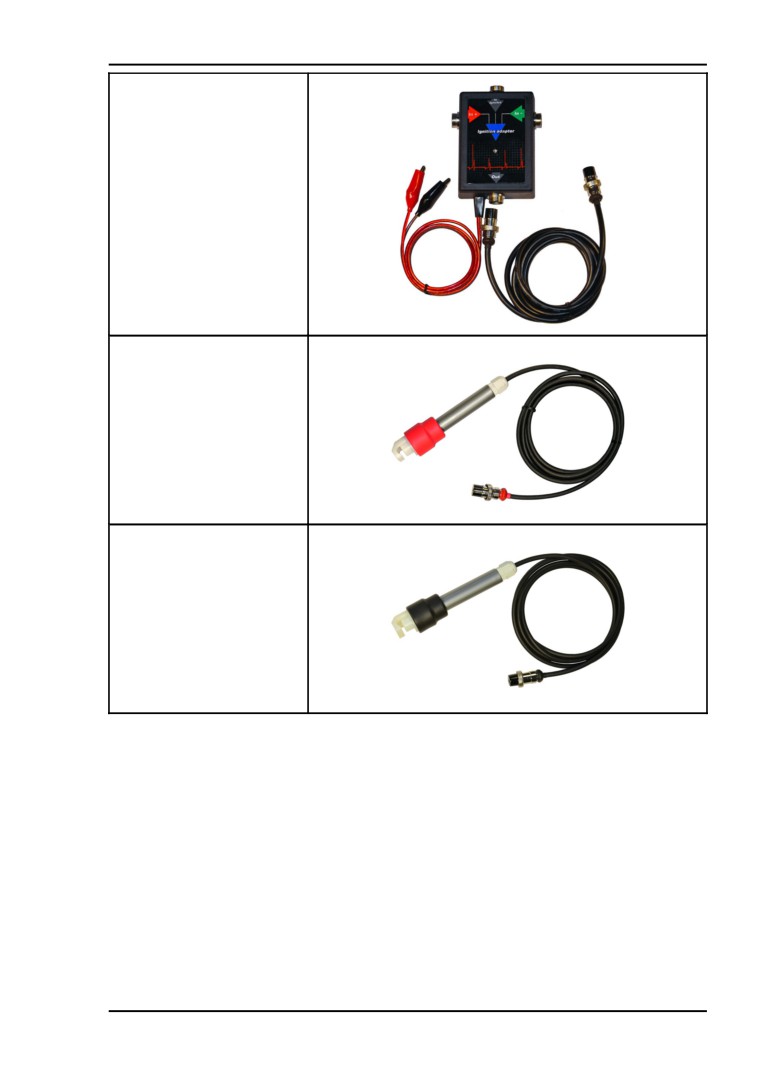

Ignition Adapter for ignition
system diagnosing, connecting
cable PIN5-PIN5
Cx capacitive transducer
Sync synchronization transducer
www.autoscope.eu
15
USB Autoscope III
- Operation Manual

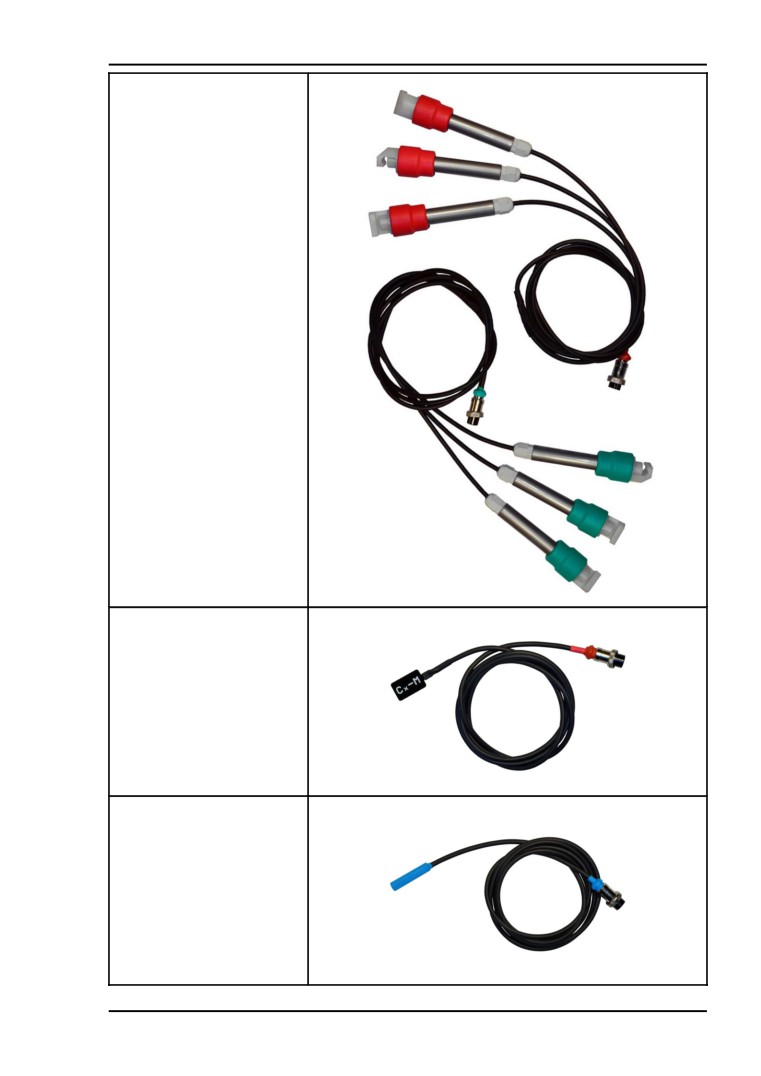

DIS Cx 6 capacitive probes
Cx-M universal capacitive probe
Lx-M universal inductive probe
www.autoscope.eu
16
USB Autoscope III
- Operation Manual
6. Manufacturer limited warranty
The manufacturer guarantees the performance of components supplied with the
USB Autoscope III during their warranty period.
Warranty period for the main unit USB Autoscope III is 24 months from the date of sale,
for transducers Px and Dx - 12 months.
During the warranty period, the manufacturer will at their discretion, replace or repair
components that failed due to a manufacturing defect or during normal use. Failures caused
by abuse or neglect, are not covered.
This warranty gives you specific legal rights and you may have other rights that vary, depending
on where you reside.
7. Troubleshooting
7.1 The device does not turn on
The device is not connected to USB 2.0 480 Mbit/s (HI-SPEED) port of the host computer.
Connect the device to USB 2.0 480 Mbit/s (HI-SPEED) port of the host laptop or PC.
Faulty, low-speed or too long USB cable.
Change the USB cable to a quality high-speed USB 2.0 A/B interface cable of no more than
3 meters in length and with a label stating "CERTIFIED HI-SPEED USB".
The driver for "Universal Serial Bus controller" is not installed.
Install the drivers for the motherboard that is in your computer.
The USB 2.0 480 Mbit/s (HI-SPEED) port of the personal computer is broken.
Try another port or computer.
The USB 2.0 480 Mbit/s (HI-SPEED) port of the personal computer does not provide
enough current.
While in operate mode the current consumption does not exceed 350 mA which is well
below the maximum allowable 500 mA for USB devices. However, some computers does not
provide the required current. One of several possible reasons is a malfunction
of the USB port's supply circuit. Try another port, or try to connect to a powered USB hub.
The PC or laptop's power settings may have been set to limit the current available
to the USB port. Try changing power settings, or use a powered hub.
www.autoscope.eu
17
USB Autoscope III
- Operation Manual
7.2 "USB transfer error"
If in the process of working with the device in the USB Oscilloscope window the message
USB transfer error message appears, it indicates distortion and/or damage to the data that are
sent via the USB interface.
The device and / or its USB cable placed too close to the source of electromagnetic
interference.
Ground the device using a separate multi stranded copper wire with a cross section
of more than 0.5 mm2.
Used faulty, low-speed or too long USB cable.
Change the USB cable to a quality high-speed USB 2.0 A/B interface cable of no more
than 3 meters in length and with a label stating "CERTIFIED HI-SPEED USB".
v4.3.9.5
www.autoscope.eu
18
Open full version in PDF - 814 KB

For viewing materials in *.pdf format Adobe Reader is necessary,
which are possible to be downloaded from man www.adobe.com.
